The displayed price is for the S-Shear 2106 model with a Cutting length of 2100 mm, 6 mm ST 42 maximum thickness and it includes transport, installation and training.
For the other configurations in the S-Shear Series, click on the form.
Standart Equipments:
- CE Norms
- Pendant control panel
- CNC control - Cybelec CybTouch 8 (color-touch screen)
- Automatic cutting length (stroke) adjustment controlled by CNC
- Ball screw backgauge with 1000 mm stroke controlled by CNC
- Automatic calculations of cutting functions according to material specifications
- CNC controlled automatic blade gap adjustment
- Automatic swing-up backgauge
- 1 meter flip-up openable finger guard with switch protection
- Back side protection panels
- Back light barrier
- Rear sheet sliding plates
- Shadow line lighting
- Squaring arm with ruler & T-slot & tilting stop
- Support arms
- Ball transfer tables
- Hold down pistons with rubber pads
- Fixed cutting angle
- 2 sided top & 4 sided bottom blades
- European hydraulic system
- European electric system

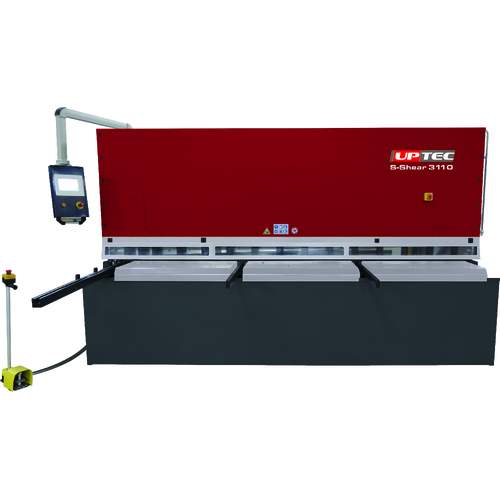

S-Shear Series - CNC Swing Beam Shears
- Brand: UPTEC
- Product Code: S-Shear
- Availability: Pre-Order
-
25,813.34 €
- Ex Tax: 25,813.34 €
