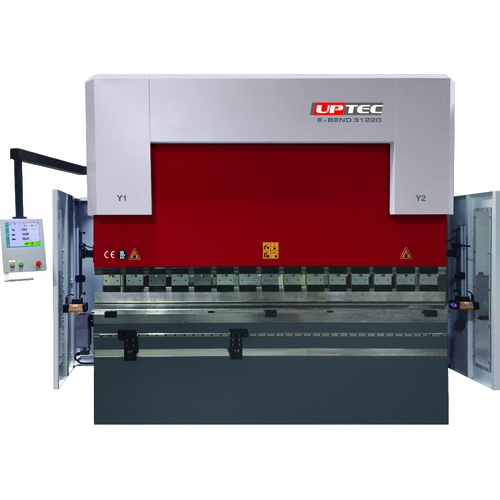

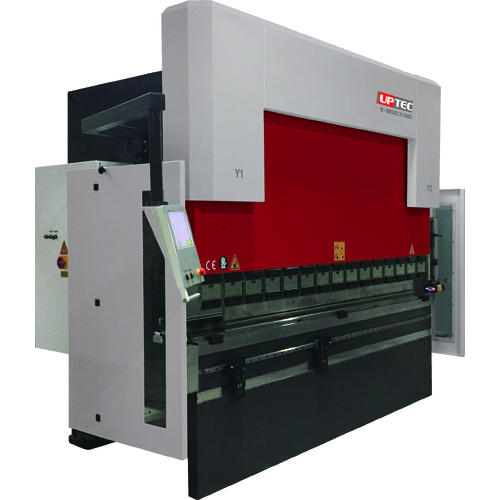

The displayed price is for the E-Bend 2160 model with a Bending length of 2100 mm and 60 tons Force and it includes transport, installation and training.

For the other configurations in the E-Bend Series, click on the form.

Standart Equipments:

•  Y1-Y2-X axis
•  Cybelec CybTouch 12 PS-2D Touchscreen Graphical CNC control unit & 2D offline PC Software or ESA S630 Control Unit
• CE Norm
•  Fiessler AKAS front laser safety
•  Pendant control panel
•  X-axis backgauge : AC motorised & linear guide & ballscrew system with 2 pcs. backgauge fingers
•  European (promecam) quick release top tool clamping system
•  European top tool grinded & hardened
•  European bottom tool with 4V-groove
•  Manual table crowning system with wedges (on 260 & 320 tons)
•  CNC motorized table crowning system with wedges (on 400 tons and 6 meters)
•  Back light barrier
•  Switched side protection doors for safety
•  Interior area lighting
•  Linear sliding front support arms with 2 pcs. arm
•  High accuracy optical linear scale
•  European hydraulic system
•  European electric system
